DNGA150412S01030A 7025 Carbide Insert, Grade 7025 - Sandvik Coromant 5731988
MFR# 5731988ISO/ANSI# DNGA150412S01030A 7025Series T-Max P
$162.52List $208.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade7025
MaterialCarbide
Description

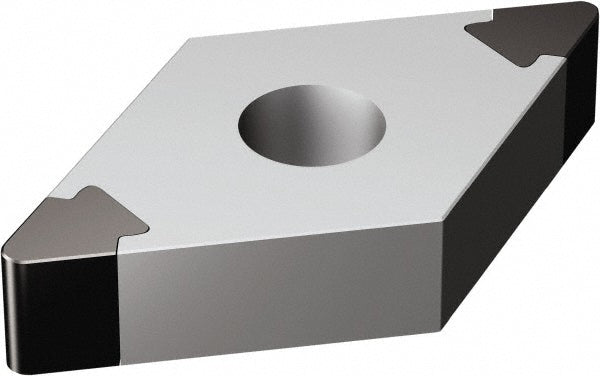

The Sandvik Coromant 5731988 is a DNGA150412S01030A 7025 carbide indexable insert, grade 7025. Suited for hard material.
Specifications
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in3/64
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1299
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150412S01030A 7025
Length range0.0000 - 0.3000
Manufacturer grade7025
Number of cutting edges4
Primary workpiece materialHard Material
Relief angle0
Tolerance codeG
Wiper edgeNo
