Sandvik Coromant

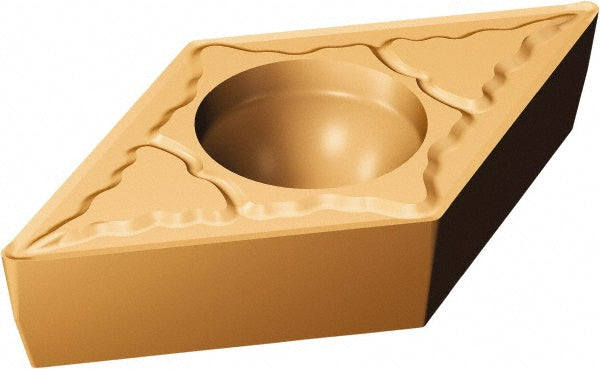

DPMT 11 T3 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5732210
MFR# 5732210ISO/ANSI# DPMT 11 T3 08-MM 1125Series CoroTurn 111
$20.34List $26.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5732210 is a DPMT 11 T3 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleDPMT
Insert thickness in5/32
Iso codeDPMT 11 T3 08-MM 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
