Sandvik Coromant

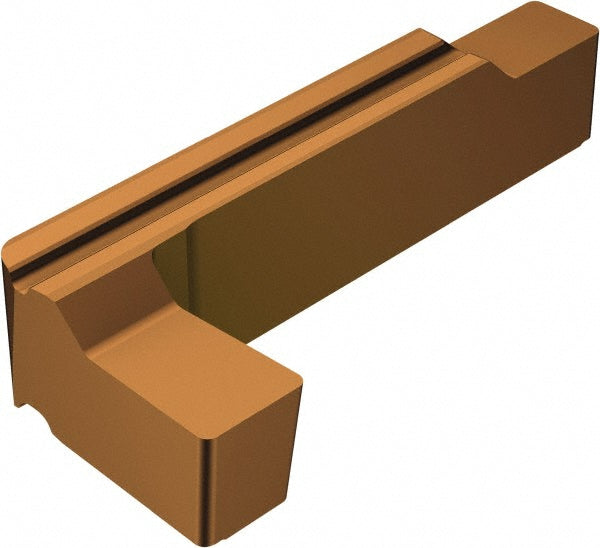

LG123L1-0400-0004-GS1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5732328
MFR# 5732328ISO/ANSI# LG123L1-0400-0004-GS1115Cat# LG123L1-0400-0004-GS1115Series CoroCut 1-2
$68.61List $88.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5732328 is a LG123L1-0400-0004-GS1115 carbide indexable insert, grade 1115, TiAlN coated.
Specifications
Chip breakerGS
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting height0.2382
Cutting width0.1575
Insert handLeft Hand
Insert materialCarbide
Insert seat sizeLX
Insert sizeLX
Insert styleR/LG123..
Insert thickness0.1713
Iso codeLG123L1-0400-0004-GS1115
Lead angle90
Manufacturers catalog numberLG123L1-0400-0004-GS1115
Manufacturer grade1115
Maximum depth of cut0.3543
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall length1.2165
Overall width0.1575
RakeNeutral
Rake angle7
