Sandvik Coromant

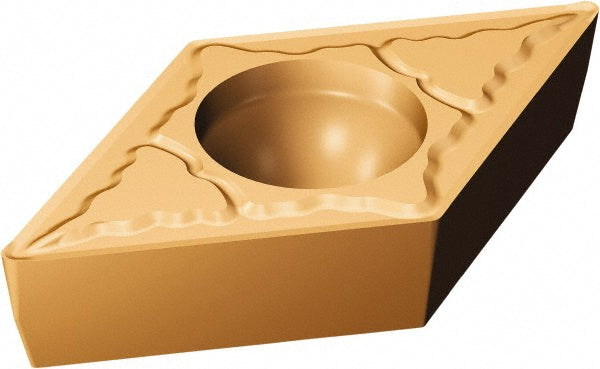

DPMT 07 02 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5732445
MFR# 5732445ISO/ANSI# DPMT 07 02 08-MM 1125Series CoroTurn 111
$14.98List $19.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5732445 is a DPMT 07 02 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1102
Included angle55
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.3051
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleDPMT
Insert thickness in3/32
Iso codeDPMT 07 02 08-MM 1125
Length range0.3000 - 0.4000
Manufacturers catalog number5732445
Manufacturer grade1125
Maximum depth of cut0.2736
Number of cutting edges2
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
