Sandvik Coromant

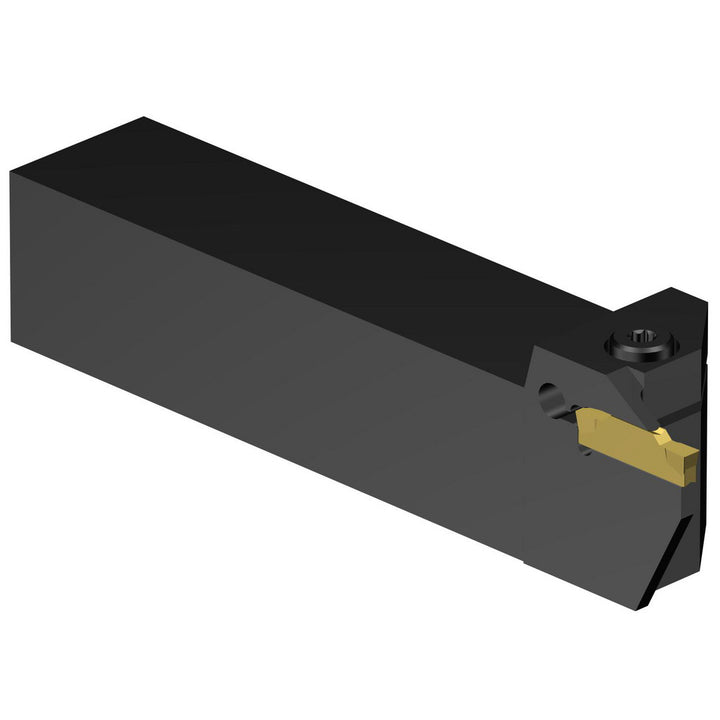

Indexable Grooving - Sandvik Coromant 5732555
MFR# 5732555Cat# LF123G040-16BSeries CoroCut 1-2
$254.15List $270.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5732555 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge5.0000
Compatible insert size codeN123G2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderLeft Hand
Head height1.0000
Head length1.0000
Insert compatibilityN123G2-0300-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberLF123G040-16B
Maximum depth of cut0.4000
Maximum groove width (mm)4.00
Maximum overhang in0.8800
Minimum groove width0.1181
Overall length (mm)127.00
Shank height in1
Shank length4.1200
Shank width diameter in1
Toolholder styleLF123..B
