Sandvik Coromant

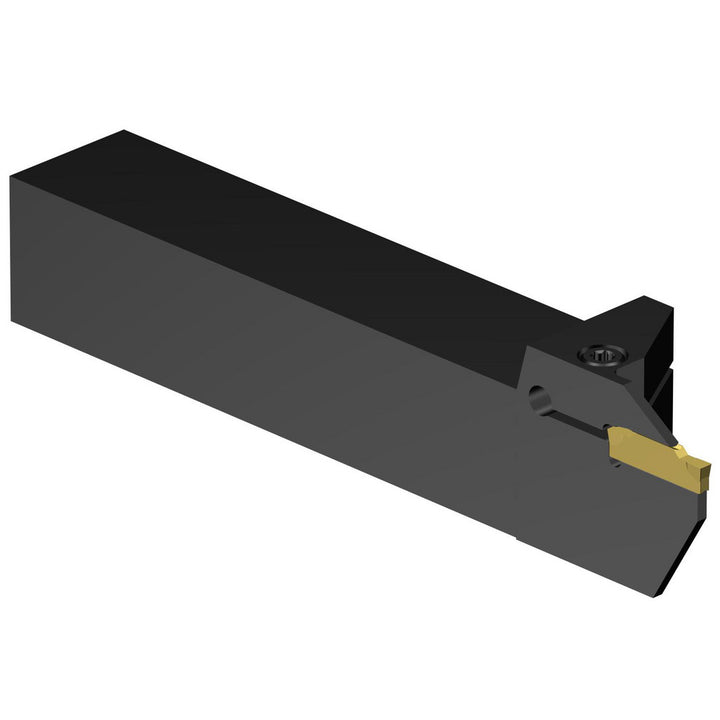

Indexable Grooving - Sandvik Coromant 5732572
MFR# 5732572Cat# LF123F079-16BSeries CoroCut 1-2
$254.15List $270.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5732572 indexable grooving. Series CoroCut 1-2.
Specifications
Back of bar to cutting edge6.0000
Compatible insert size codeN123F2
Coolant throughNo
Cutting tool applicationCut-Off; Grooving; Parting
Hand of holderLeft Hand
Head height1.0000
Head length1.0000
Insert compatibilityN123F2-0250-CM
Insert holding methodClamp
Internal or externalExternal
Manufacturers catalog numberLF123F079-16B
Maximum depth of cut0.7900
Maximum groove width0.1250
Maximum overhang in1.5750
Minimum groove width0.0941
Overall length (mm)152.40
Shank height in1
Shank length4.4250
Shank width diameter in1
Toolholder styleLF123..B
