Sandvik Coromant

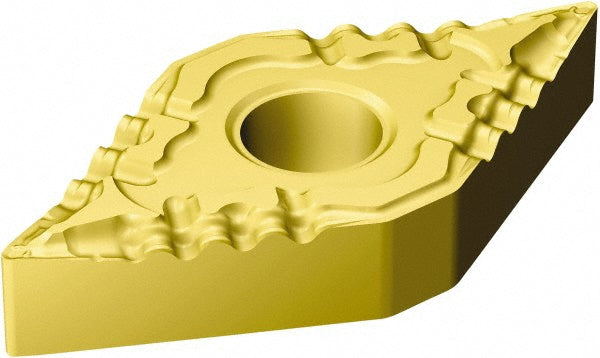

DNMG 15 04 08-PF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5732685
MFR# 5732685ISO/ANSI# DNMG 15 04 08-PF 1525Series T-Max P
$22.32List $28.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5732685 is a DNMG 15 04 08-PF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-PF 1525
Length range0.5000 - 0.6000
Manufacturer grade1525
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
