Sandvik Coromant

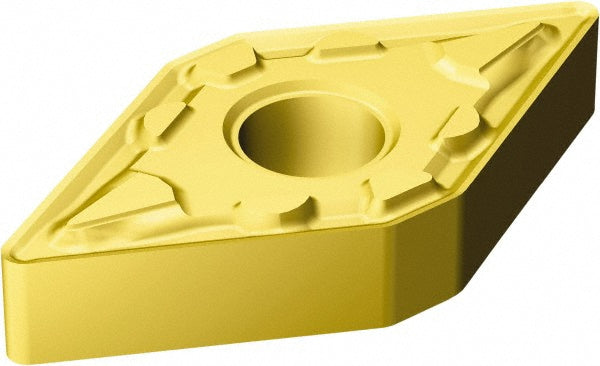

DNMG 15 04 08-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5732702
MFR# 5732702ISO/ANSI# DNMG 15 04 08-MM 2025Series T-Max P
$21.80List $27.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5732702 is a DNMG 15 04 08-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2030
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5789
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 08-MM 2025
Length range0.5000 - 0.6000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
