Sandvik Coromant

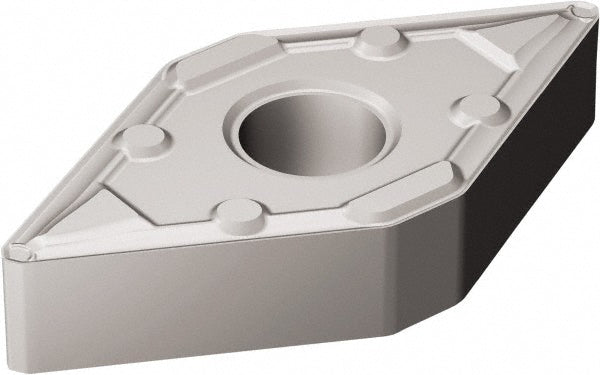

DNMX 11 04 08-WF 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5733124
MFR# 5733124ISO/ANSI# DNMX 11 04 08-WF 5015Cat# DNMX 11 04 08-WF 5015Series T-Max P
$20.08List $25.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeParallelogram
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5733124 is a DNMX 11 04 08-WF 5015 cermet indexable insert, grade 5015.
Specifications
Chip breakerX
Clearance codeN
Coating processUncoated
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4263
Insert materialCermet
Insert shapeParallelogram
Insert size code332
Insert styleDNMX
Insert thickness in3/16
Iso codeDNMX 11 04 08-WF 5015
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMX 11 04 08-WF 5015
Manufacturer grade5015
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Relief angle0
Tolerance codeM
