Sandvik Coromant

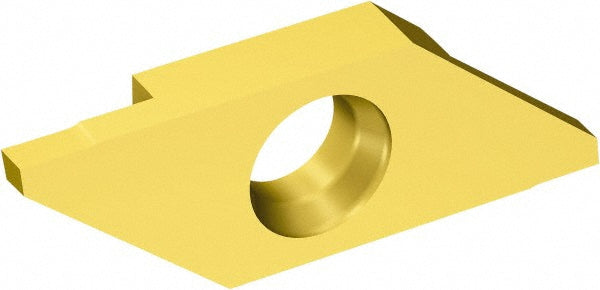

Solid Carbide Insert, Grade 1025, TiN/TiAlN - Sandvik Coromant 5733330
MFR# 5733330Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiN/TiAlN
Description
The Sandvik Coromant 5733330 is a solid carbide indexable insert, grade 1025, TiN/TiAlN coated.
Specifications
ChipbreakerMAC
Coating finishTiN/TiAlN
Coating processPVD
Corner radius0.0020
Cutting tool applicationGrooving; Parting; Turning
Cutting width0.0591
Full radiusNo
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleMACL
Lead angle0
Lead angle directionLeft Hand
Manufacturers catalog number5733330
Manufacturer grade1025
Maximum depth of cut0.2480
Relief angle6.00
Width tolerance0.0008 (Inch)
