Sandvik Coromant

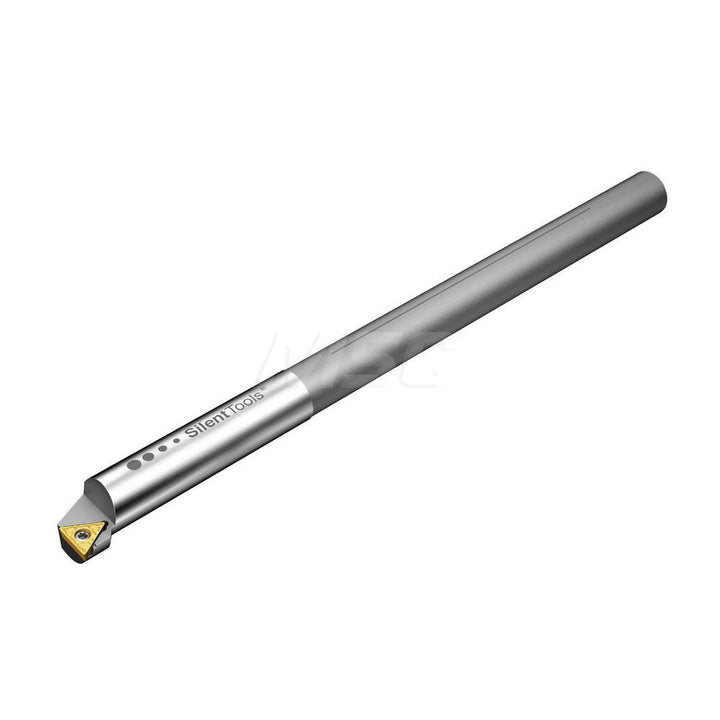

Indexable Boring - Sandvik Coromant 5733352
MFR# 5733352Cat# F10M-STFCR 09-RSeries CoroTurn 107
$878.34List $933.12
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5733352 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge5.9055
Center to cutting edge0.2756
Coolant throughNo
Hand of holderRight Hand
Insert compatibilityTCMT 1.81.51
Insert holding methodScrew Clamping
Insert inscribed circle0.2250
Insert thickness in3/32
Lead angle0.00
Manufacturers catalog numberF10M-STFCR 09-R
Minimum bore diameter0.5118
Minimum bore diameter using diamond insert cartridge0.5118
Minimum bore diameter using triangle insert cartridge0.5118
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter0.3937
Number of inserts used on toolholder1
Overall length5.9055
RakeNeutral
Rake angle0.00
Shank diameter (mm)10.00
Toolholder styleF-STFC
Tool materialSolid Carbide
