Sandvik Coromant

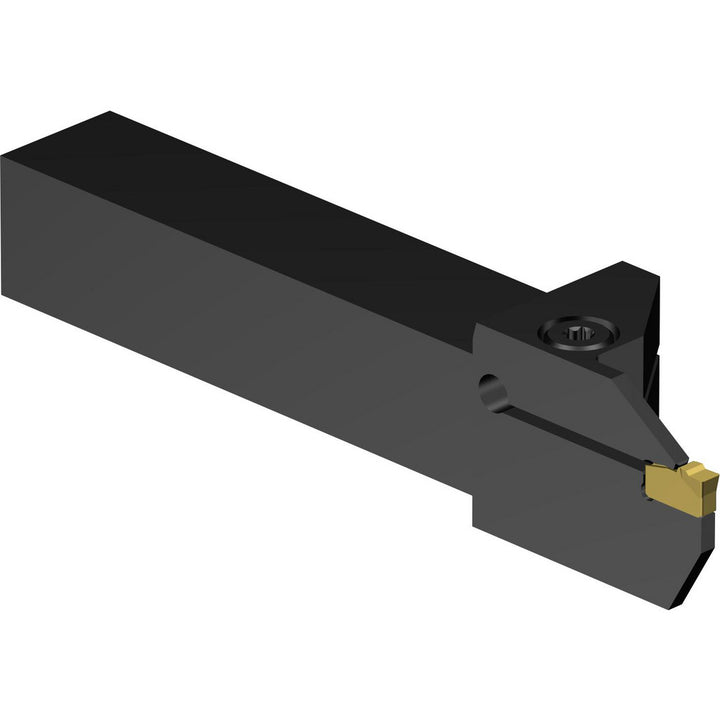

Indexable Grooving - Sandvik Coromant 5733609
MFR# 5733609Cat# LF151.23-12-30Series T-Max Q-Cut
$238.90List $253.80
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5733609 indexable grooving. Series T-Max Q-Cut.
Specifications
Back of bar to cutting edge5.0000
Coolant throughNo
Hand of holderLeft Hand
Head height0.7500
Head length0.7500
Insert compatibilityN151.2-300-5E
Insert holding methodClamp
Insert seat size30.0
Internal or externalExternal
Manufacturers catalog numberLF151.23-12-30
Maximum depth of cut0.7900
Maximum groove width (mm)4.15
Minimum groove width0.1181
Overall length (mm)127.00
Shank height in3/4
Shank length3.3860
Shank width diameter in3/4
Toolholder styleLF151.23
