Sandvik Coromant

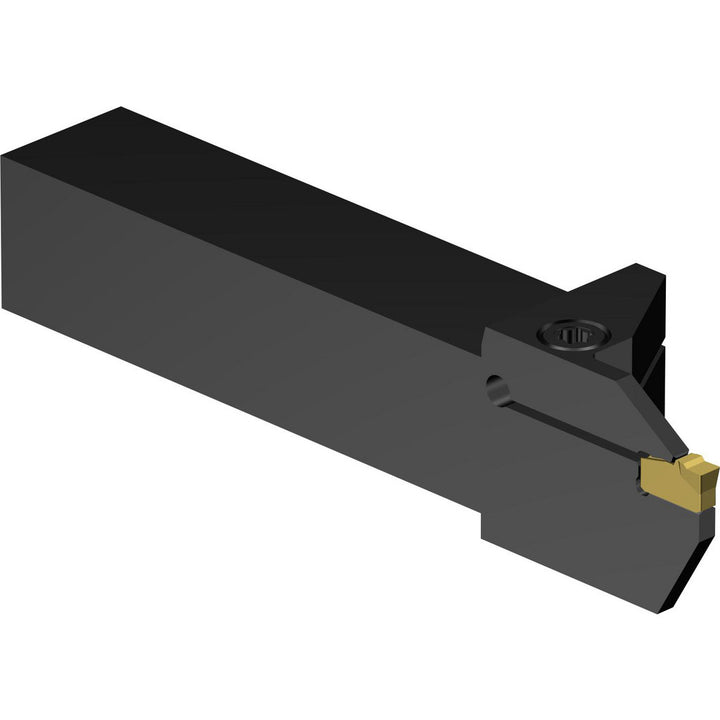

Indexable Grooving - Sandvik Coromant 5733614
MFR# 5733614Cat# LF151.23-16-40Series T-Max Q-Cut
$254.15List $270.00
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5733614 indexable grooving. Series T-Max Q-Cut.
Specifications
Back of bar to cutting edge6.0000
Coolant throughNo
Hand of holderLeft Hand
Head height1.0000
Head length1.0000
Insert compatibilityN151.2-400-5E
Insert holding methodClamp
Insert seat size40.0
Internal or externalExternal
Manufacturers catalog numberLF151.23-16-40
Maximum depth of cut0.9800
Maximum groove width (mm)6.00
Minimum groove width0.1560
Overall length (mm)152.40
Shank height in1
Shank length4.1500
Shank width diameter in1
Toolholder styleLF151.23
