Sandvik Coromant

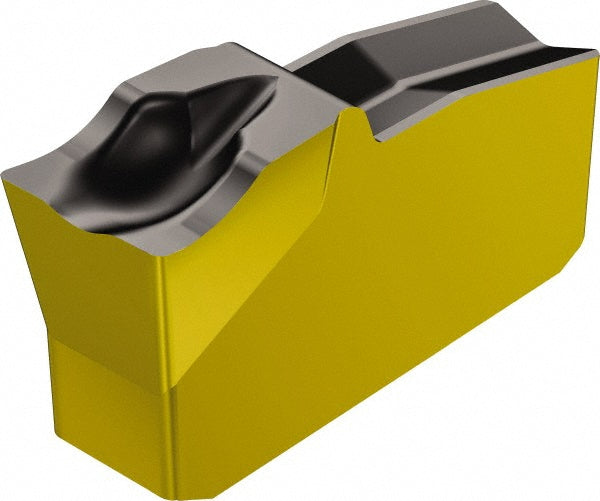

Solid Carbide Insert, Grade 4225, TiCN/Al2O3/TiN - Sandvik Coromant 5733723
MFR# 5733723Cat# L151.2-400 05-5E 4225Series T-Max Q-Cut
$23.15List $29.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade4225
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5733723 is a solid carbide indexable insert, grade 4225, TiCN/Al2O3/TiN coated.
Specifications
Chipbreaker5E
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handLeft Hand
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat size40
Insert size code40
Insert styleL151.2
Lead angle0
Lead angle directionLeft Hand
Manufacturers catalog numberL151.2-400 05-5E 4225
Manufacturer grade4225
Overall width0.1575
Relief angle7.00
