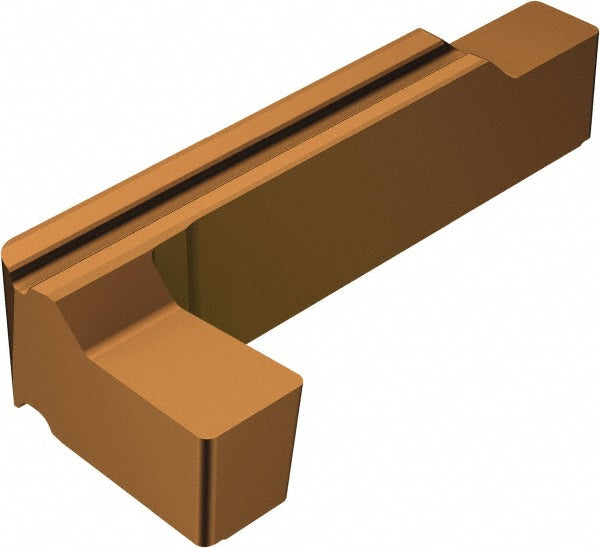

LG123H1-0200-0002-GS1115 Solid Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5734046
MFR# 5734046ISO/ANSI# LG123H1-0200-0002-GS1115Cat# LG123H1-0200-0002-GS1115Series CoroCut 1-2
$57.38List $73.60
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1115
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5734046 is a LG123H1-0200-0002-GS1115 solid carbide indexable insert, grade 1115, TiAlN coated.
Specifications
Chip breakerGS
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting height0.1713
Cutting width0.0787
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat sizeHX
Insert sizeHX
Insert styleG123
Insert thickness0.1713
Iso codeLG123H1-0200-0002-GS1115
Lead angle90
Manufacturers catalog numberLG123H1-0200-0002-GS1115
Manufacturer grade1115
Maximum corner radius0.0098
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0059
Multi use toolYes
Overall length1.0059
Overall width0.0787
RakeNeutral
Rake angle7.00
