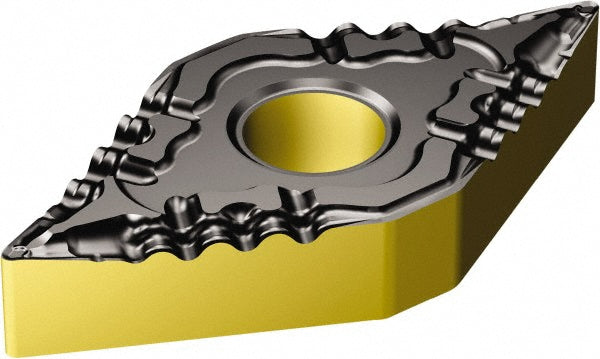

DNMG 15 04 04-PF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5734164
MFR# 5734164ISO/ANSI# DNMG 15 04 04-PF 1515Series T-Max P
$22.07List $28.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5734164 is a DNMG 15 04 04-PF 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishTiCN
Corner radius in1/64
Hole diameter0.2032
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6102
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 15 04 04-PF 1515
Length range0.6000 - 0.6500
Manufacturers catalog number5734164
Manufacturer grade1515
Maximum depth of cut0.5945
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
