Sandvik Coromant

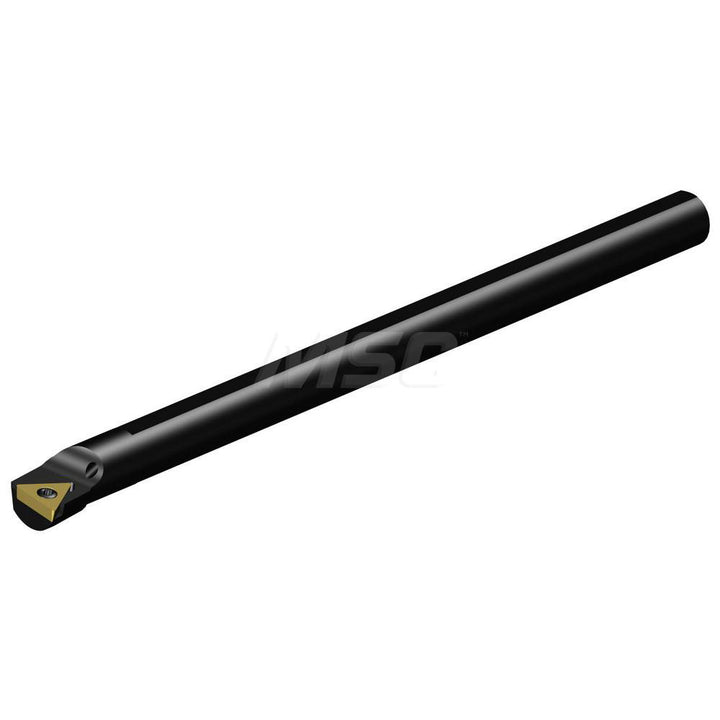

Indexable Boring - Sandvik Coromant 5734211
MFR# 5734211Cat# E06M-STFCR 1.8Series CoroTurn 107
$497.11List $528.12
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5734211 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge6.0000
Center to cutting edge0.2640
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 1.81.51
Insert holding methodScrew Clamping
Insert inscribed circle0.2250
Insert thickness in3/32
Lead angle0.00
Manufacturers catalog numberE06M-STFCR 1.8
Minimum bore diameter in1/2
Minimum bore diameter using diamond insert cartridge0.5000
Minimum bore diameter using triangle insert cartridge0.5000
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in3/8
Number of inserts used on toolholder1
Overall length in6
RakeNeutral
Rake angle0.00
Shank diameter in3/8
Toolholder styleE-STFC
Tool materialSolid Carbide
