Sandvik Coromant

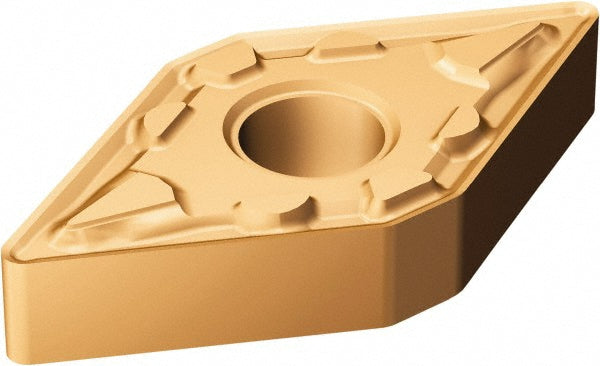

DNMG 11 04 08-MM 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5734266
MFR# 5734266ISO/ANSI# DNMG 11 04 08-MM 1125Cat# DNMG 11 04 08-MM 1125Series T-Max P
$20.51List $26.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5734266 is a DNMG 11 04 08-MM 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4263
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 11 04 08-MM 1125
Length range0.4000 - 0.5000
Manufacturers catalog numberDNMG 11 04 08-MM 1125
Manufacturer grade1125
Maximum depth of cut0.4263
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Non-Ferrous Metal; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
