Sandvik Coromant

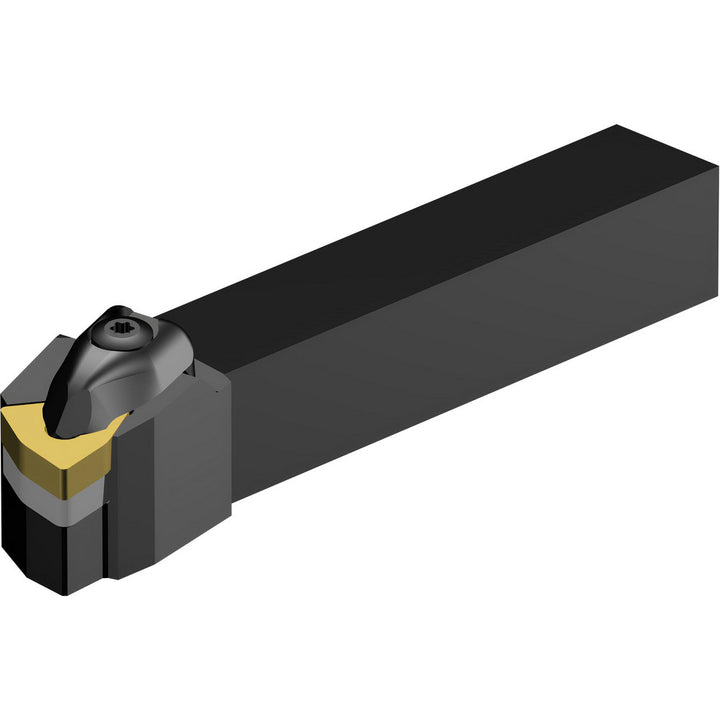

Indexable Turning & Profiling - Sandvik Coromant 5734769
MFR# 5734769Series T-Max® P
$158.58List $168.48
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5734769 indexable turning & profiling. Series T-Max® P.
Specifications
Back of bar to cutting edge in5
Cutting tool applicationFacing
Hand of holderRight Hand
Head length1.3780
Insert compatibilityWNMG 432
Insert holding methodWedge
Insert inscribed circle in1/2
Insert width in1/2
Multi use toolYes
Overall length in5
RakeNegative
Rake angle-6
Shank height in3/4
Shank width in3/4
Toolholder materialSteel
Toolholder styleDWLNR
