Sandvik Coromant

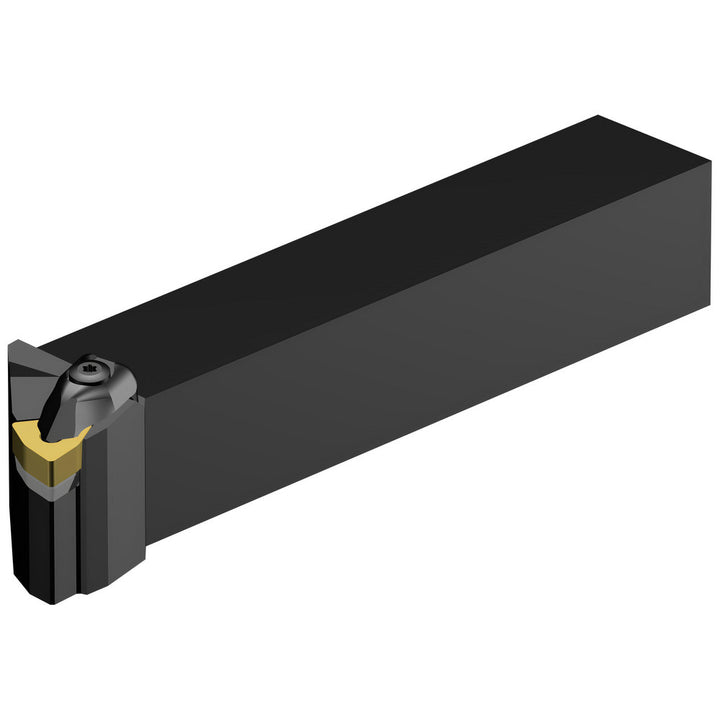

Indexable Turning & Profiling - Sandvik Coromant 5734772
MFR# 5734772Series T-Max® P
$171.81List $182.52
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5734772 indexable turning & profiling. Series T-Max® P.
Specifications
Back of bar to cutting edge in6
Cutting tool applicationFacing
Hand of holderRight Hand
Head length1.9500
Insert compatibilityWNMG 332
Insert holding methodWedge
Insert inscribed circle in3/8
Insert width in3/8
Multi use toolYes
Overall length in6
RakeNegative
Rake angle-6
Shank height in1
Shank width in1
Toolholder materialSteel
Toolholder styleDWLNR
