Sandvik Coromant
7/32" IC Solid Carbide Insert, Grade 3040, TiCN - Sandvik Coromant 5735052
MFR# 5735052
$18.57List $23.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC7/32
Grade3040
MaterialSolid Carbide
CoatingTiCN
Description

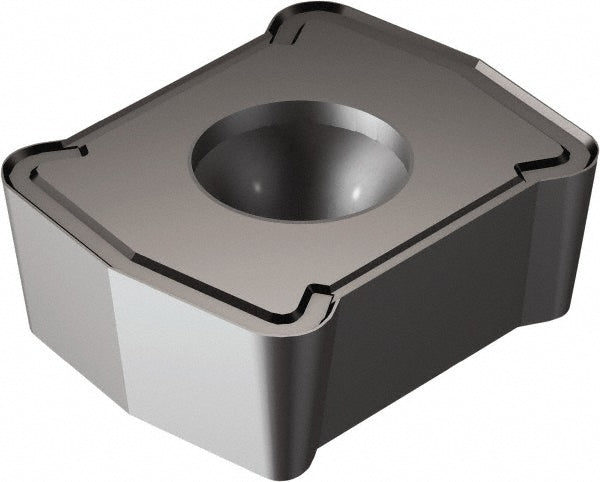

The Sandvik Coromant 5735052 is a solid carbide indexable insert, grade 3040, TiCN coated.
Specifications
Chipbreaker53
Coating finishTiCN
Coating processMTCVD
Corner radius0.0315
Cutting directionRight Hand
Hole diameter0.0984
Included angle degree7
Inscribed circle in7/32
Insert materialSolid Carbide
Insert size3
Insert styleLCMX
Manufacturer grade3040
Relief angle7
ShapeRectangle
Thickness in1/8
