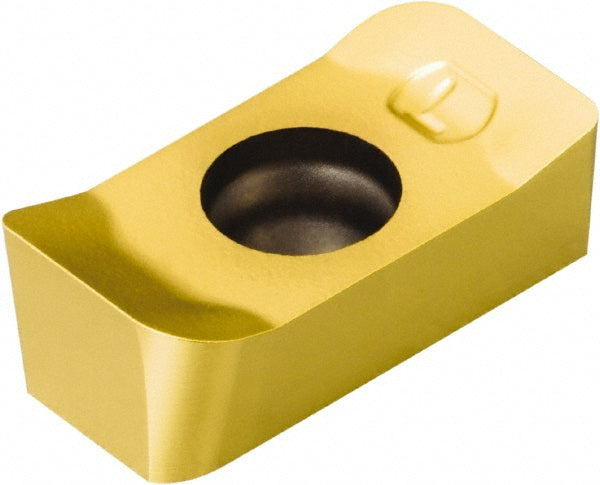

L331.1A-04 35 15H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5735365

Sandvik Coromant

L331.1A-04 35 15H-WL1025 Solid Carbide Insert, Grade 1025, TiCN - Sandvik Coromant 5735365

MFR# 5735365ISO/ANSI# L331.1A-04 35 15H-WL1025Cat# L331.1A-04 35 15H-WL1025Series L331.1A

$31.91List $40.93 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
Grade1025
MaterialSolid Carbide
CoatingTiCN

Description

The Sandvik Coromant 5735365 is a L331.1A-04 35 15H-WL1025 solid carbide indexable insert, grade 1025, TiCN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeL331.1A-04 35 15H-WL1025
Chip breakerWL
Coating finishTiCN
Coating processPVD
Corner radius0.0598
Cutter series compatibilityN331.32
Cutting edge styleCorner Rounded
Hole diameter0.1024
Included angle degree90
Inscribed circle0.2000
Inscribed circle range0.0000 to 0.2500
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size04
Insert size code043515
Insert styleL331.1A
Iso codeL331.1A-04 35 15H-WL1025
Length0.1811
Length range0.0000 to 0.3200
Manufacturers catalog numberL331.1A-04 35 15H-WL1025
Manufacturer grade1025
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Maximum depth of cut0.1811
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1378
Thickness range0.1250 to 0.1500
Width0.3740
