Sandvik Coromant

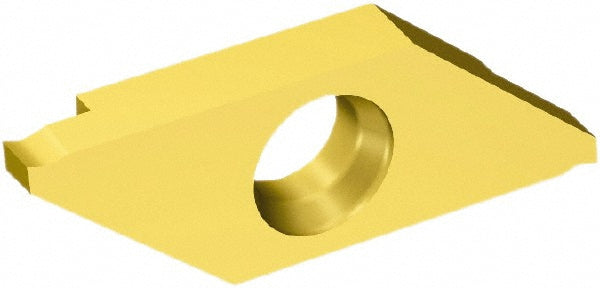

MAGR 3 075 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735401
MFR# 5735401ISO/ANSI# MAGR 3 075 1025Cat# MAGR 3 075 1025Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735401 is a MAGR 3 075 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Chip breakerMAG
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0020
Cutting height in1/8
Cutting width0.0295
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleMAG
Insert thickness0.1250
Iso codeMAGR 3 075 1025
Manufacturers catalog numberMAGR 3 075 1025
Manufacturer grade1025
Maximum corner radius0.0028
Maximum depth of cut0.0984
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0012
Multi use toolYes
Overall width0.0295
RakeNeutral
Rake angle6.00
