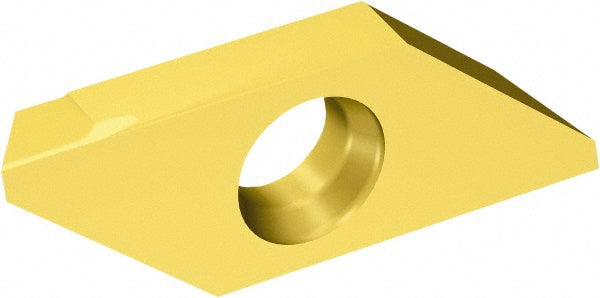

MAFR 3 020 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5735409

Sandvik Coromant

MAFR 3 020 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5735409

MFR# 5735409ISO/ANSI# MAFR3020Cat# MAFR 3 020 1025Series CoroCut XS

$58.10List $74.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/8
ShapeNon-ISO Specialty Shapes
Grade1025
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5735409 is a MAFR 3 020 1025 carbide indexable insert, grade 1025, TiAlN coated.

Specifications

Ansi insert codeMAFR3020
Ansi size code3020
Chip breakerKM
Chip breaker operationRoughing; Medium Machining
Clearance codeA
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Full radiusYes
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1250
Inscribed circle in1/8
Insert handRight Hand
Insert holding methodScrew
Insert materialCarbide
Insert shapeNon-ISO Specialty Shapes
Insert size code3020
Insert styleMAFR
Insert thickness in1/8
Iso codeMAFR 3 020 1025
Iso insert codeMAFR3020
Iso size code3020
Manufacturers catalog numberMAFR 3 020 1025
Manufacturer grade1025
Multi use applicationTurning
Multi use toolYes
Relief angle6
Side clearancePositive
Tolerance codeF
