Sandvik Coromant

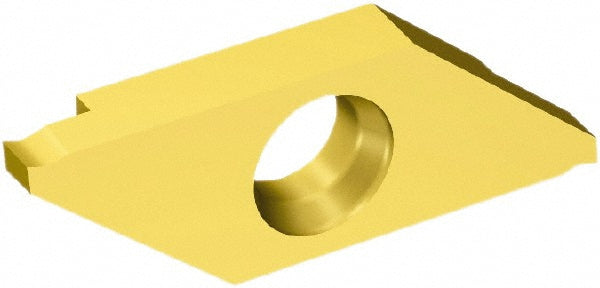

MAGL 3 050 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735415
MFR# 5735415ISO/ANSI# MAGL 3 050 1025Cat# MAGL 3 050 1025Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735415 is a MAGL 3 050 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Chip breakerMAG
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0020
Cutting height in1/8
Cutting width0.0197
Insert handLeft Hand
Insert materialSolid Carbide
Insert seat size3
Insert size3
Insert styleMAG
Insert thickness0.1250
Iso codeMAGL 3 050 1025
Manufacturers catalog numberMAGL 3 050 1025
Manufacturer grade1025
Maximum corner radius0.0028
Maximum depth of cut0.0512
Maximum depth of cut range0.0000 to 0.0750
Minimum corner radius0.0012
Multi use toolYes
Overall length0.4732
Overall width0.0197
RakeNeutral
Rake angle6.00
