Sandvik Coromant

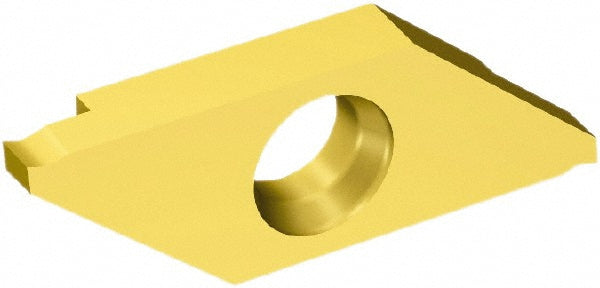

Solid Carbide Insert, Grade 1025, TiN/TiAlN - Sandvik Coromant 5735429
MFR# 5735429Series CoroCut XS
$58.10List $74.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiN/TiAlN
Description
The Sandvik Coromant 5735429 is a solid carbide indexable insert, grade 1025, TiN/TiAlN coated.
Specifications
ChipbreakerMAG
Coating finishTiN/TiAlN
Coating processPVD
Corner radius0.0020
Cutting tool applicationGrooving; Parting; Turning
Cutting width0.0984
Full radiusNo
Insert handLeft Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert seat size3
Insert size code3
Insert styleMAGL
Manufacturers catalog number5735429
Manufacturer grade1025
Maximum depth of cut0.1457
Relief angle6.00
Width tolerance0.0008 (Inch)
