Sandvik Coromant

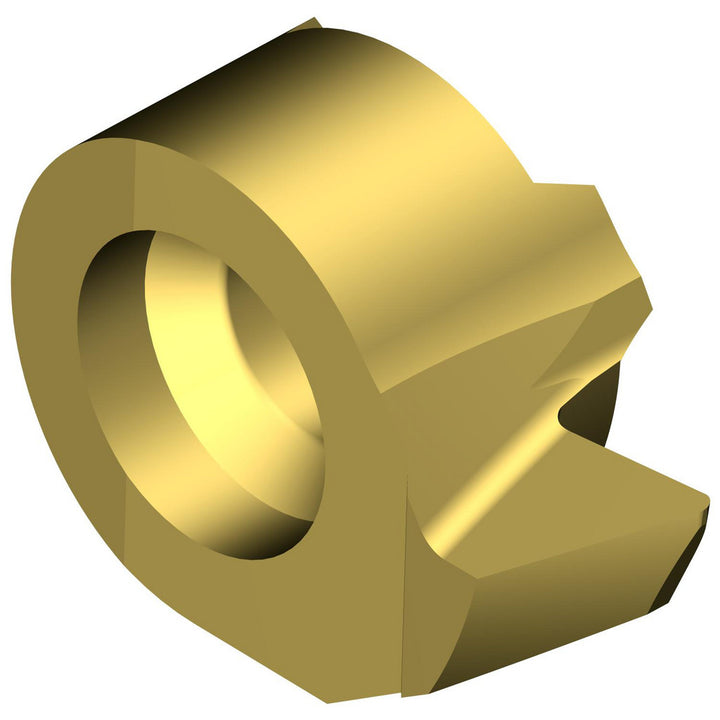

MB-07B030-02-11R 1025 Solid Carbide Insert, Grade 1025, TiCN/TiN - Sandvik Coromant 5735549
MFR# 5735549ISO/ANSI# MB-07B030-02-11R 1025Cat# MB-07B030-02-11R 1025
$35.71List $45.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiCN/TiN
Description
The Sandvik Coromant 5735549 is a MB-07B030-02-11R 1025 solid carbide indexable insert, grade 1025, TiCN/TiN coated.
Specifications
Coating finishTiCN/TiN
Coating processPVD
Corner radius0.0079
Cutting directionRight Hand
Inscribed circle0.2800
Insert handRight Hand
Insert materialSolid Carbide
Insert size code07
Insert styleMB
Iso codeMB-07B030-02-11R 1025
Manufacturers catalog numberMB-07B030-02-11R 1025
Manufacturer grade1025
RakePositive
