Sandvik Coromant

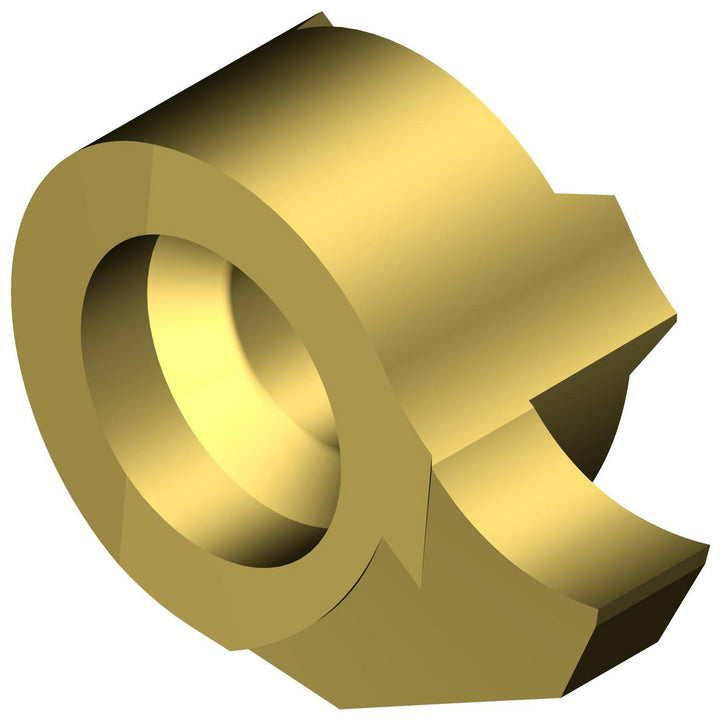

MB-07G200-00-11R 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735623
MFR# 5735623ISO/ANSI# MB-07G200-00-11R 1025Cat# MB-07G200-00-11R 1025Series CoroCut MB
$31.28List $40.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735623 is a MB-07G200-00-11R 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Cutting width0.0787
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size7
Insert size07
Insert styleMB
Insert thickness0.2677
Iso codeMB-07G200-00-11R 1025
Lead angle90
Manufacturers catalog numberMB-07G200-00-11R 1025
Manufacturer grade1025
Maximum depth of cut0.1102
Maximum depth of cut range0.1000 to 0.1500
Multi use toolYes
Overall length0.1850
Overall width0.0787
RakeNeutral
Rake angle2.00
