Sandvik Coromant

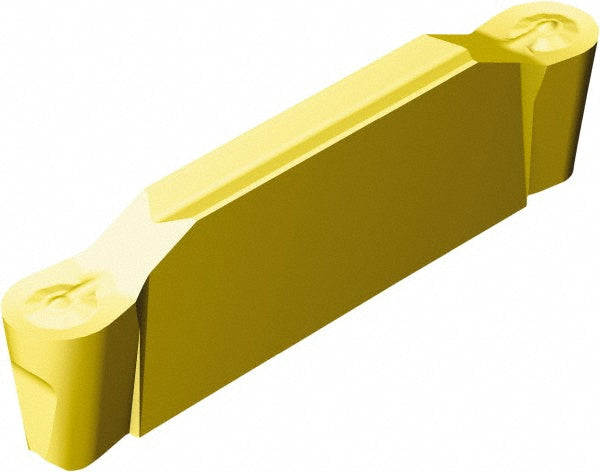

N123E2-0200-RO S05F Solid Carbide Insert, TiCN/Al2O3/TiN - Sandvik Coromant 5735642
MFR# 5735642ISO/ANSI# N123E2-0200-RO S05FCat# N123E2-0200-RO S05FSeries CoroCut 1-2
$46.32List $59.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5735642 is a N123E2-0200-RO S05F solid carbide indexable insert, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerRO
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0394
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE2
Insert styleN123x2
Insert thickness0.1693
Iso codeN123E2-0200-RO S05F
Manufacturers catalog numberN123E2-0200-RO S05F
Maximum depth of cut0.7560
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0394
Multi use toolYes
Overall length0.7890
Overall width0.0790
RakePositive
