Sandvik Coromant

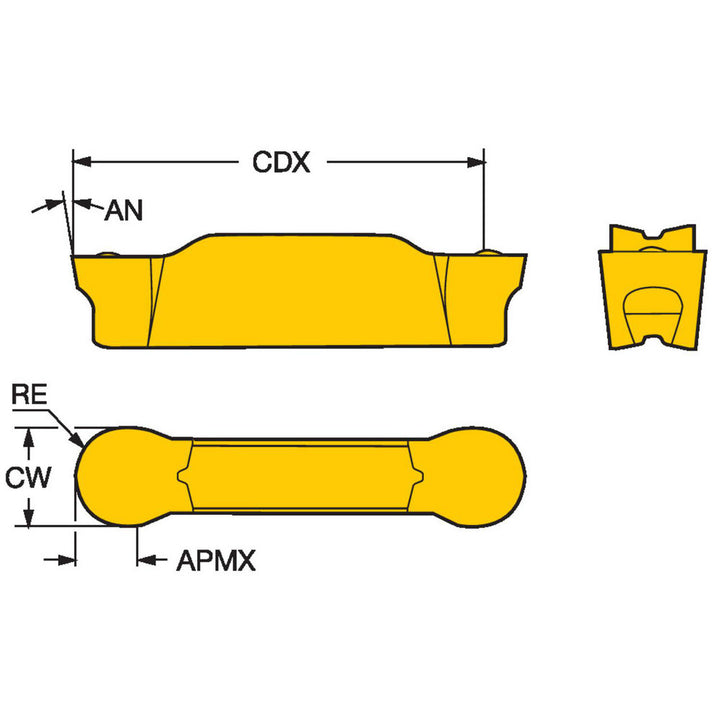

N123E2-0200-RO 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5735646
MFR# 5735646ISO/ANSI# N123E2-0200-RO 1125Cat# N123E2-0200-RO 1125Series CoroCut 1-2
$44.28List $56.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735646 is a N123E2-0200-RO 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE2
Insert styleN123x2
Insert thickness0.1693
Iso codeN123E2-0200-RO 1125
Manufacturers catalog numberN123E2-0200-RO 1125
Maximum depth of cut0.7560
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0394
Multi use toolYes
Overall length0.7890
Overall width0.0790
RakePositive
