Sandvik Coromant
N123E2-0200-RO 2135 Solid Carbide Insert, TiCN/Al2O3/TiN - Sandvik Coromant 5735648
MFR# 5735648ISO/ANSI# N123E2-0200-RO 2135Cat# N123E2-0200-RO 2135Series CoroCut 1-2
$43.54List $55.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description

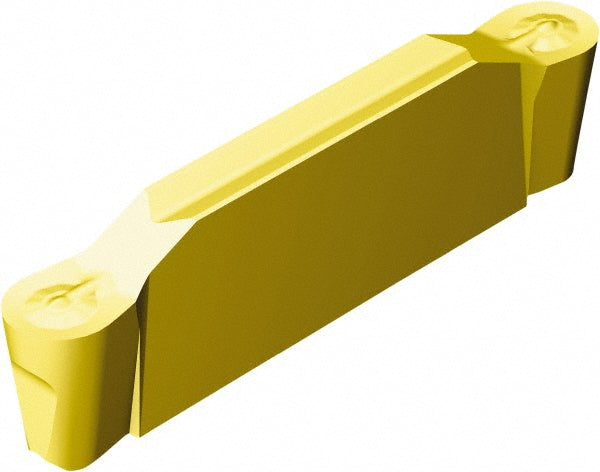

The Sandvik Coromant 5735648 is a N123E2-0200-RO 2135 solid carbide indexable insert, TiCN/Al2O3/TiN coated.
Specifications
Chip breakerRO
Coating finishTiCN/Al2O3/TiN
Coating processMT-CVD
Corner radius0.0394
Cutting height0.1693
Cutting width0.0787
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeE
Insert sizeE2
Insert styleN123x2
Insert thickness0.1693
Iso codeN123E2-0200-RO 2135
Manufacturers catalog numberN123E2-0200-RO 2135
Maximum depth of cut0.7560
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0394
Multi use toolYes
Overall length0.7890
Overall width0.0790
RakePositive
