Sandvik Coromant

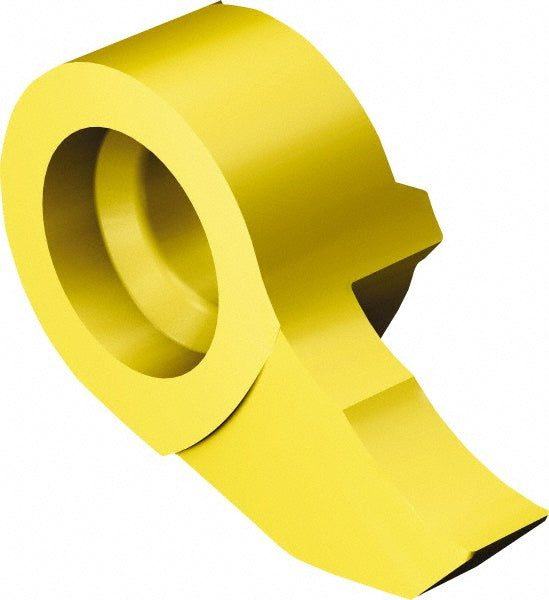

MB-09G120-00-14R 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735699
MFR# 5735699ISO/ANSI# MB-09G120-00-14R 1025Cat# MB-09G120-00-14R 1025Series CoroCut MB
$32.80List $42.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735699 is a MB-09G120-00-14R 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Cutting width0.0472
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size9
Insert size09
Insert styleMB
Insert thickness0.3543
Iso codeMB-09G120-00-14R 1025
Lead angle90
Manufacturers catalog numberMB-09G120-00-14R 1025
Manufacturer grade1025
Maximum depth of cut0.1575
Maximum depth of cut range0.1500 to 0.2000
Multi use toolYes
Overall length0.2362
Overall width0.0472
RakeNeutral
Rake angle2.00
