Sandvik Coromant

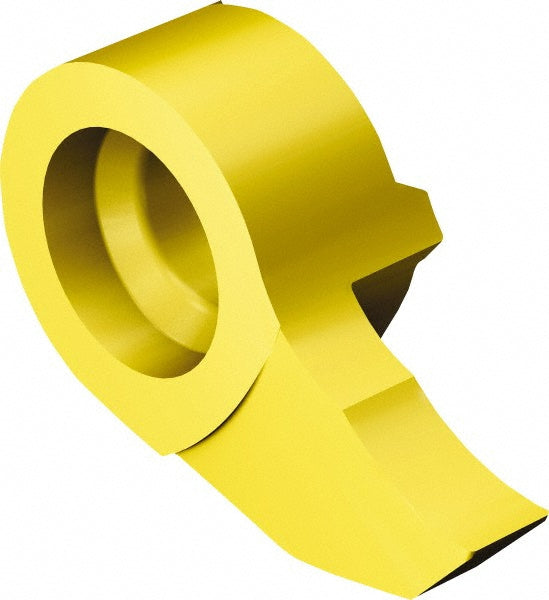

MB-09G090-00-14R 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735716
MFR# 5735716ISO/ANSI# MB-09G090-00-14R 1025Cat# MB-09G090-00-14R 1025Series CoroCut MB
$32.80List $42.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735716 is a MB-09G090-00-14R 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Cutting width0.0366
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size9
Insert size09
Insert styleMB
Insert thickness0.3543
Iso codeMB-09G090-00-14R 1025
Lead angle90
Manufacturers catalog numberMB-09G090-00-14R 1025
Manufacturer grade1025
Maximum depth of cut0.0591
Maximum depth of cut range0.0000 to 0.0750
Multi use toolYes
Overall length0.2323
Overall width0.0366
RakeNeutral
Rake angle2.00
