Sandvik Coromant

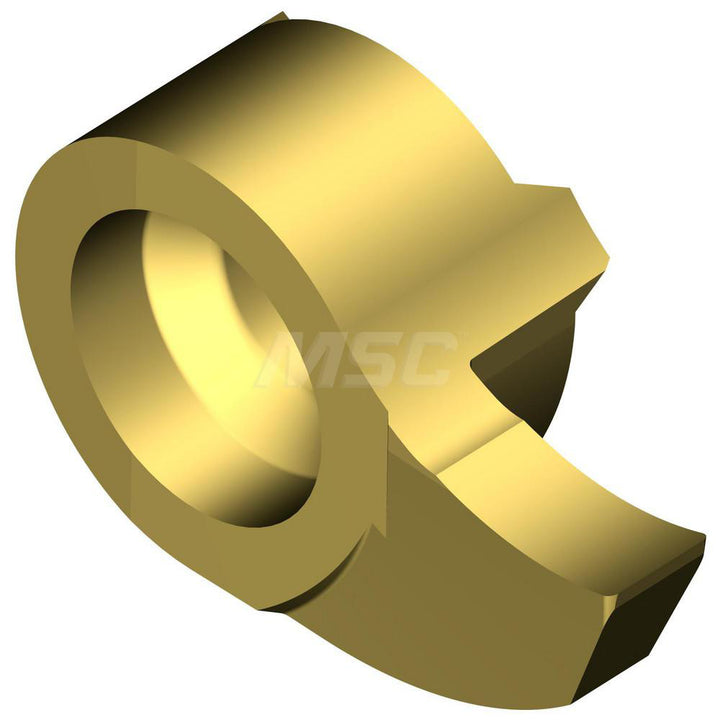

MB-09G250-02-16R 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735727
MFR# 5735727ISO/ANSI# MB-09G250-02-16R 1025Cat# MB-09G250-02-16R 1025Series CoroCut MB
$34.98List $44.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735727 is a MB-09G250-02-16R 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0079
Cutting width0.0984
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size9
Insert size09
Insert styleMB
Insert thickness0.4134
Iso codeMB-09G250-02-16R 1025
Lead angle90
Manufacturers catalog numberMB-09G250-02-16R 1025
Manufacturer grade1025
Maximum corner radius0.0087
Maximum depth of cut0.2165
Maximum depth of cut range0.2000 to 0.3000
Minimum corner radius0.0071
Multi use toolYes
Overall length0.2323
Overall width0.0984
RakeNeutral
Rake angle2.00
