Sandvik Coromant

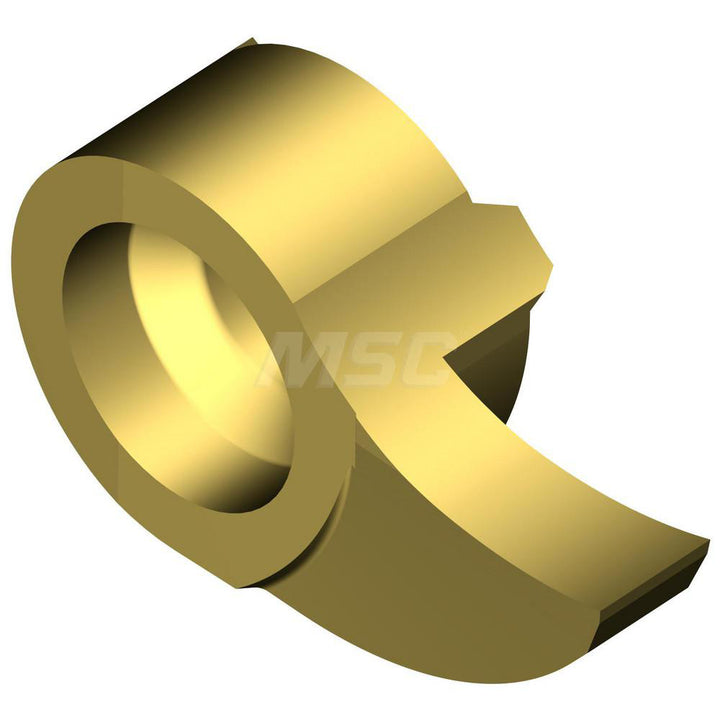

MB-09G300-00-17R 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735852
MFR# 5735852ISO/ANSI# MB-09G300-00-17R 1025Cat# MB-09G300-00-17R 1025Series CoroCut MB
$34.98List $44.87
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735852 is a MB-09G300-00-17R 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Cutting width0.1181
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size9
Insert size09
Insert styleMB
Insert thickness0.4528
Iso codeMB-09G300-00-17R 1025
Lead angle90
Manufacturers catalog numberMB-09G300-00-17R 1025
Manufacturer grade1025
Maximum depth of cut0.2559
Maximum depth of cut range0.2000 to 0.3000
Multi use toolYes
Overall length0.2323
Overall width0.1181
RakeNeutral
Rake angle2.00
