MB-09R080-04-14L 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5735855

Sandvik Coromant

MB-09R080-04-14L 1025 Carbide Insert, Grade 1025, TiAlN - Sandvik Coromant 5735855

MFR# 5735855ISO/ANSI# MB-09R080-04-14L 1025Series CoroCut MB

$37.05List $47.52 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/32
Grade1025
MaterialCarbide
CoatingTiAlN

Description

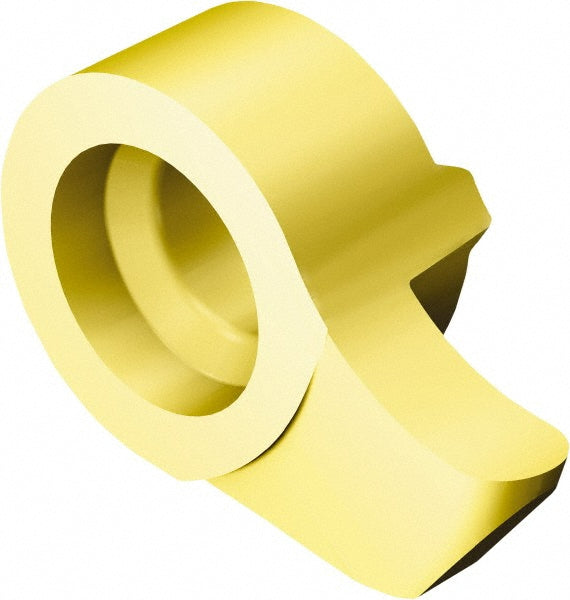

The Sandvik Coromant 5735855 is a MB-09R080-04-14L 1025 carbide indexable insert, grade 1025, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerNone
Coating finishTiAlN
Coating processPVD
Corner radius0.0158
Hole diameter0.3546
Included angle360
Inscribed circle in1/32
Insert handLeft Hand
Insert height0.0000
Insert holding methodClamp
Insert length0.2323
Insert materialCarbide
Insert size code09R0
Insert styleMB
Iso codeMB-09R080-04-14L 1025
Manufacturer grade1025
Material gradeP25; M25; S25
Maximum depth of cut0.1575
Msc manufacturer numberMB-09R080-04-14L 1025
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle2
ShapeRectangle
StandardsMB-09R080-04-14L 1025; MB-09R080-04-14L 1025
Thickness0.0000
Width in1/32
