Sandvik Coromant

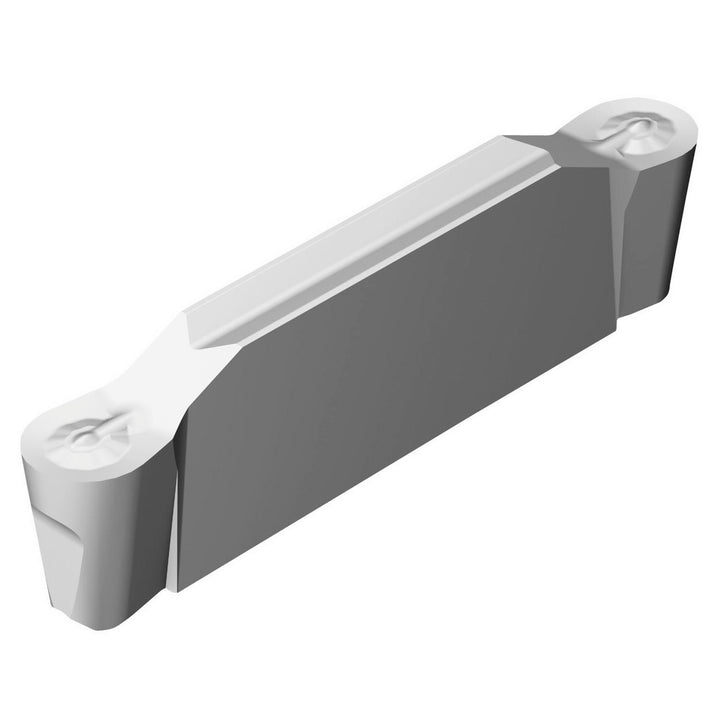

N123F2-0318-RO 1105 Solid Carbide Insert, TiAlN - Sandvik Coromant 5735862
MFR# 5735862ISO/ANSI# N123F2-0318-RO 1105Cat# N123F2-0318-RO 1105Series CoroCut 1-2
$49.35List $63.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735862 is a N123F2-0318-RO 1105 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRO
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting height0.1693
Cutting width in1/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeF
Insert sizeF2
Insert styleN123x2
Insert thickness0.1693
Iso codeN123F2-0318-RO 1105
Manufacturers catalog numberN123F2-0318-RO 1105
Maximum depth of cut0.7320
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0625
Multi use toolYes
Overall length0.7890
Overall width0.1250
RakePositive
