Sandvik Coromant

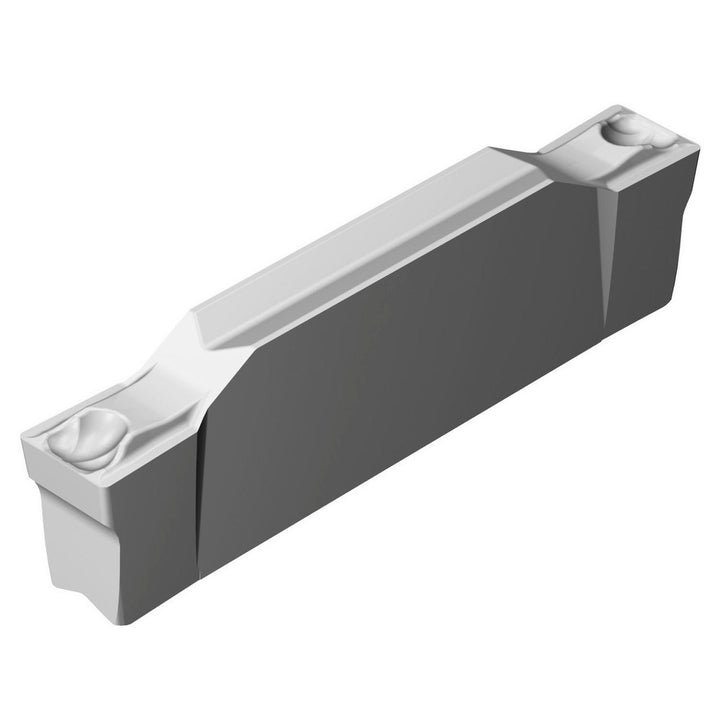

N123F2-0239-0002-GF 1105 Solid Carbide Insert, Grade 1105, TiAlN2 - Sandvik Coromant 5735893
MFR# 5735893ISO/ANSI# N123F2-0239-0002-GF 1105Cat# N123F2-0239-0002-GF 1105Series CoroCut 1-2
$49.35List $63.29
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1105
MaterialSolid Carbide
CoatingTiAlN2
Description
The Sandvik Coromant 5735893 is a N123F2-0239-0002-GF 1105 solid carbide indexable insert, grade 1105, TiAlN2 coated.
Specifications
Chip breakerGF
Coating finishTiAlN2
Coating processPVD
Corner radius0.0079
Cutting height0.1693
Cutting width0.0941
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeF
Insert sizeF
Insert styleN123
Insert thickness0.1693
Iso codeN123F2-0239-0002-GF 1105
Manufacturers catalog numberN123F2-0239-0002-GF 1105
Manufacturer grade1105
Maximum corner radius0.0098
Maximum depth of cut0.7559
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0059
Multi use toolYes
Overall length0.7894
Overall width0.0941
RakeNeutral
Rake angle7.00
