Sandvik Coromant
N123G2-0318-0003-GM 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5735899
MFR# 5735899ISO/ANSI# N123G2-0318-0003-GM 1125Cat# N123G2-0318-0003-GM 1125Series CoroCut 1-2
$41.17List $52.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

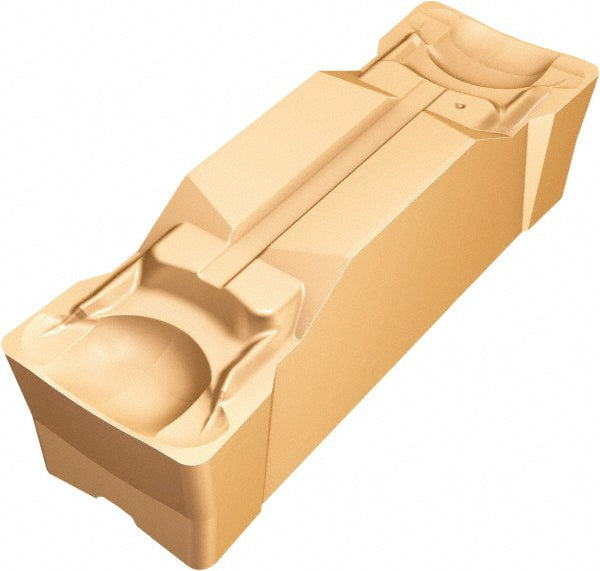

The Sandvik Coromant 5735899 is a N123G2-0318-0003-GM 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerGM
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting height0.1693
Cutting width in1/8
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G2-0318-0003-GM 1125
Manufacturers catalog numberN123G2-0318-0003-GM 1125
Manufacturer grade1125
Maximum corner radius0.0157
Maximum depth of cut0.7087
Maximum depth of cut range0.3000 to 1.0000
Minimum corner radius0.0079
Multi use toolYes
Overall length0.7776
Overall width in1/8
RakeNeutral
Rake angle7.00
