Sandvik Coromant

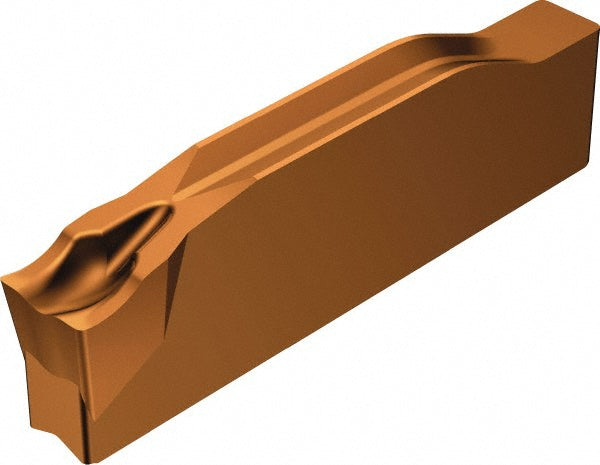

Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5735918
MFR# 5735918Cat# N123H1-0400-0002-CM 1125Series CoroCut 1-2
$29.64List $38.02
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735918 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
ChipbreakerCM
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleN123x1
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123H1-0400-0002-CM 1125
Manufacturer grade1125
Overall length0.9850
Overall width0.1575
Relief angle7.00
