Sandvik Coromant

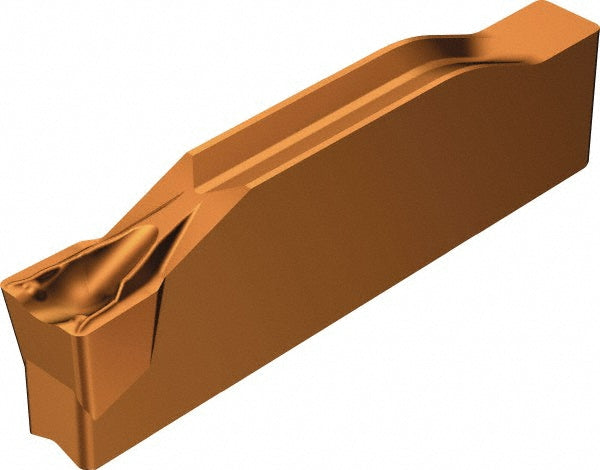

N123H1-0400-0004-TF 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5735922
MFR# 5735922ISO/ANSI# N123H1-0400-0004-TF 1125Cat# N123H1-0400-0004-TF 1125Series CoroCut 1-2
$31.07List $39.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5735922 is a N123H1-0400-0004-TF 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerTF
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting height0.1713
Cutting width0.1575
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeH
Insert sizeH1
Insert styleN123x1
Insert thickness0.1713
Iso codeN123H1-0400-0004-TF 1125
Manufacturers catalog numberN123H1-0400-0004-TF 1125
Manufacturer grade1125
Maximum depth of cut0.0866
Maximum depth of cut range0.0750 to 0.1000
Multi use toolYes
Overall width0.1713
RakePositive
