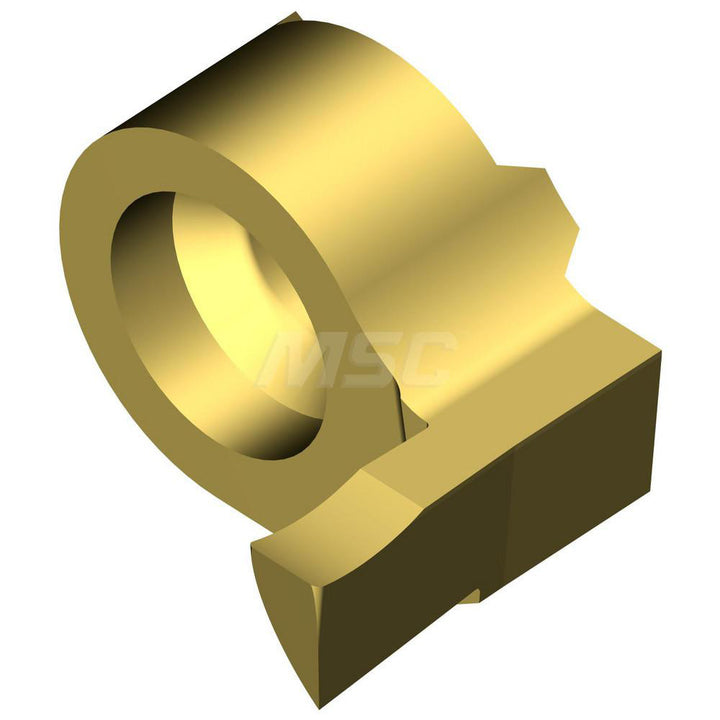

MB-09FB200-02-14R 1025 Solid Carbide Insert, Grade 1025, TiAlN/TiN - Sandvik Coromant 5735950
MFR# 5735950ISO/ANSI# MB-09FB200-02-14R 1025Cat# MB-09FB200-02-14R 1025Series CoroCut MB
$60.04List $77.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1025
MaterialSolid Carbide
CoatingTiAlN/TiN
Description
The Sandvik Coromant 5735950 is a MB-09FB200-02-14R 1025 solid carbide indexable insert, grade 1025, TiAlN/TiN coated.
Specifications
Coating finishTiAlN/TiN
Coating processPVD
Corner radius0.0079
Cutting width0.0787
Insert handRight Hand
Insert materialSolid Carbide
Insert seat size9
Insert size09
Insert styleMB
Insert thickness0.3150
Iso codeMB-09FB200-02-14R 1025
Manufacturers catalog numberMB-09FB200-02-14R 1025
Manufacturer grade1025
Maximum corner radius0.0087
Maximum depth of cut0.1969
Maximum depth of cut range0.1500 to 0.2000
Minimum corner radius0.0071
Multi use toolYes
Overall length0.4331
Overall width0.0787
RakeNeutral
Rake angle2.00
