Sandvik Coromant

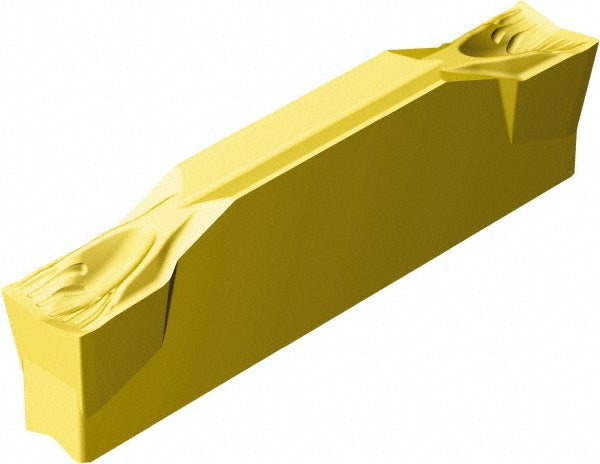

Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5736002
MFR# 5736002Cat# N123G2-0300-0001-CF 2135Series CoroCut 1-2
$38.57List $49.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736002 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCF
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0039
Cutting width0.1181
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeG
Insert size codeG
Insert styleN123x2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123G2-0300-0001-CF 2135
Manufacturer grade2135
Maximum depth of cut0.7244
Overall length0.7752
Overall width0.1181
Relief angle7.00
