Sandvik Coromant

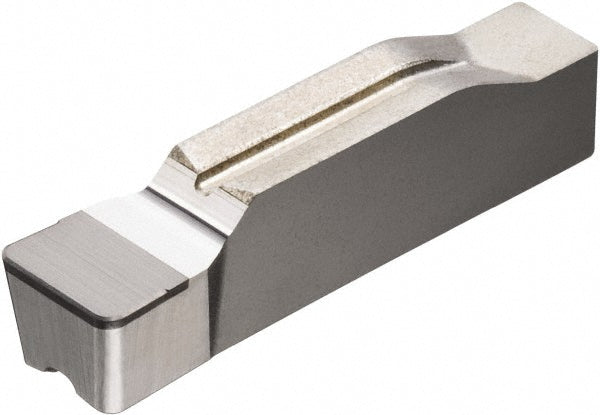

N123G1-030004S01025 7015 Cubic Boron Nitride Insert, Grade 7015 - Sandvik Coromant 5736016
MFR# 5736016ISO/ANSI# N123G1-030004S01025 7015Cat# N123G1-030004S01025 7015Series CoroCut 1-2
$136.41List $174.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade7015
MaterialCubic Boron Nitride
Description
The Sandvik Coromant 5736016 is a N123G1-030004S01025 7015 cubic boron nitride indexable insert, grade 7015.
Specifications
Chip breakerS
Coating processPVD
Corner radius0.0157
Cutting height0.1693
Cutting width0.1181
Insert handNeutral
Insert materialCubic Boron Nitride
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G1-030004S01025 7015
Manufacturers catalog numberN123G1-030004S01025 7015
Manufacturer grade7015
Maximum corner radius0.0177
Minimum corner radius0.0138
Multi use toolYes
Overall length0.7894
Overall width0.1181
RakeNeutral
Rake angle7.00
