Sandvik Coromant
N123G1-0318-0002-GE CB20 Cubic Boron Nitride Insert, Grade CB20 - Sandvik Coromant 5736020
MFR# 5736020ISO/ANSI# N123G1-0318-0002-GE CB20Cat# N123G1-0318-0002-GE CB20Series CoroCut 1-2
$136.41List $174.96
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeCB20
MaterialCubic Boron Nitride
Description

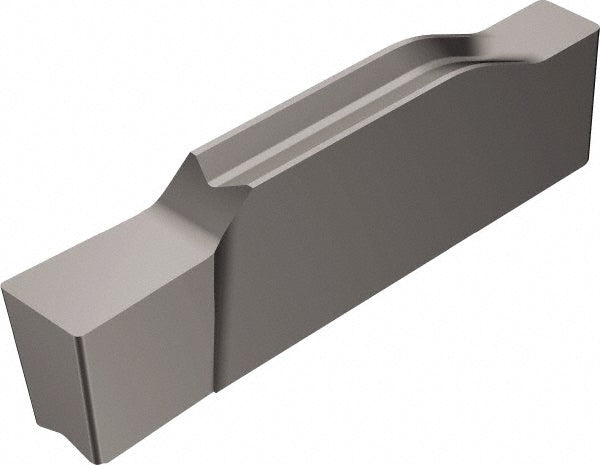

The Sandvik Coromant 5736020 is a N123G1-0318-0002-GE CB20 cubic boron nitride indexable insert, grade CB20.
Specifications
Chip breakerGE
Corner radius0.0079
Cutting height0.1693
Cutting width in1/8
Insert handNeutral
Insert materialCubic Boron Nitride
Insert seat sizeG
Insert sizeG
Insert styleN123
Insert thickness0.1693
Iso codeN123G1-0318-0002-GE CB20
Manufacturers catalog numberN123G1-0318-0002-GE CB20
Manufacturer gradeCB20
Maximum corner radius0.0098
Minimum corner radius0.0059
Multi use toolYes
Overall length0.7894
Overall width0.1252
RakeNeutral
Rake angle7.00
