Sandvik Coromant

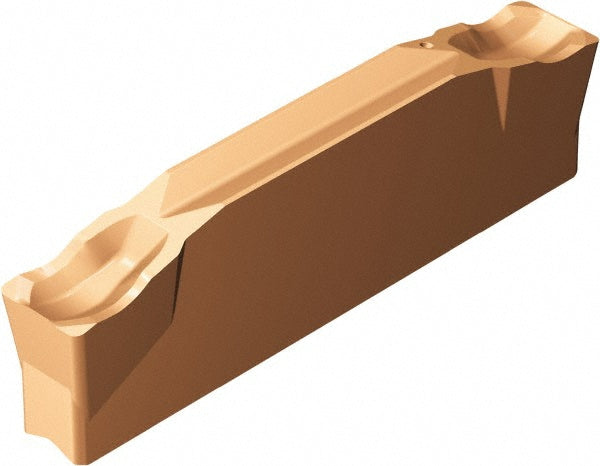

Solid Carbide Insert, Grade 1145, TiAlN - Sandvik Coromant 5736212
MFR# 5736212Cat# N123H2-0400-0003-CR 1145Series CoroCut 1-2
$41.64List $53.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1145
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736212 is a solid carbide indexable insert, grade 1145, TiAlN coated.
Specifications
ChipbreakerCR
Coating finishTiAlN
Coating processPVD
Corner radius0.0118
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleN123x2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123H2-0400-0003-CR 1145
Manufacturer grade1145
Maximum depth of cut0.9331
Overall length0.9709
Overall width0.1575
Relief angle7.00
