Sandvik Coromant

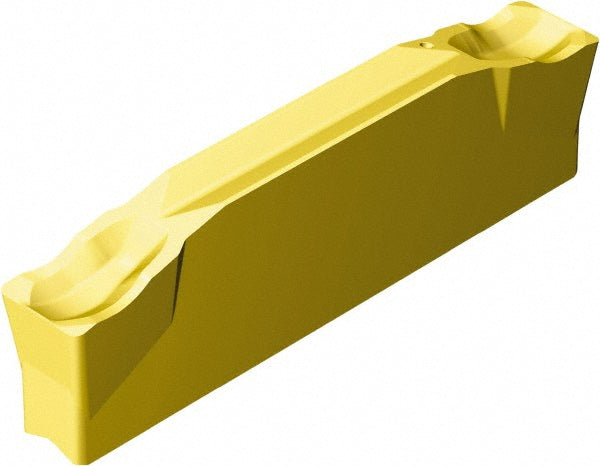

Solid Carbide Insert, Grade 2135, TiCN/Al2O3/TiN - Sandvik Coromant 5736213
MFR# 5736213Cat# N123H2-0400-0003-CR 2135Series CoroCut 1-2
$40.88List $52.43
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade2135
MaterialSolid Carbide
CoatingTiCN/Al2O3/TiN
Description
The Sandvik Coromant 5736213 is a solid carbide indexable insert, grade 2135, TiCN/Al2O3/TiN coated.
Specifications
ChipbreakerCR
Coating finishTiCN/Al2O3/TiN
Coating processMTCVD
Corner radius0.0118
Cutting width0.1575
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeH
Insert size codeH
Insert styleN123x2
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123H2-0400-0003-CR 2135
Manufacturer grade2135
Maximum depth of cut0.9331
Overall length0.9705
Overall width0.1575
Relief angle7.00
