Sandvik Coromant
Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736275
MFR# 5736275Cat# N123J1-0500-0004-CR 1125Series CoroCut 1-2
$31.20List $40.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description

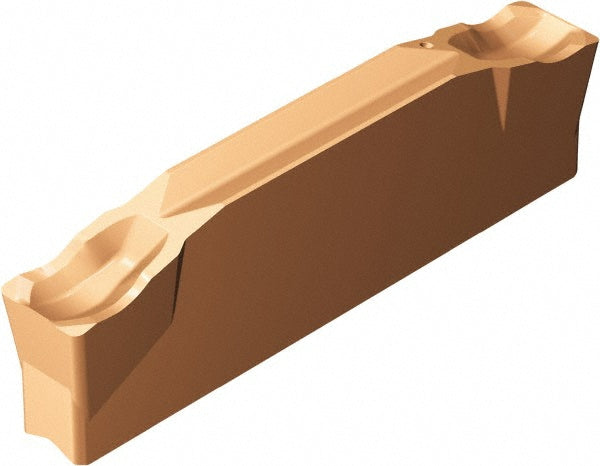

The Sandvik Coromant 5736275 is a solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
ChipbreakerCR
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting width0.1969
Full radiusNo
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert seat sizeJ
Insert size codeJ
Insert styleN123x1
Lead angle0
Lead angle directionNeutral
Manufacturers catalog numberN123J1-0500-0004-CR 1125
Manufacturer grade1125
Overall length0.9705
Overall width0.1969
Relief angle7.00
