Sandvik Coromant

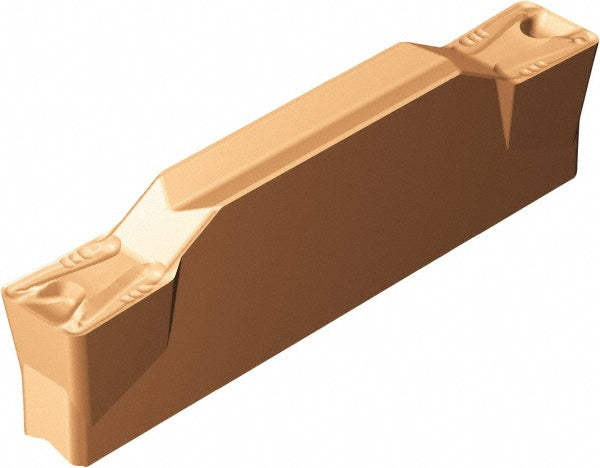

N123J2-0500-0004-TM 1125 Solid Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5736293
MFR# 5736293ISO/ANSI# N123J2-0500-0004-TM 1125Cat# N123J2-0500-0004-TM 1125Series CoroCut 1-2
$49.93List $64.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Grade1125
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736293 is a N123J2-0500-0004-TM 1125 solid carbide indexable insert, grade 1125, TiAlN coated.
Specifications
Chip breakerTM
Coating finishTiAlN
Coating processPVD
Corner radius0.0157
Cutting height0.1713
Cutting width0.1969
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeJ
Insert sizeJ2
Insert styleN123x2
Insert thickness0.1713
Iso codeN123J2-0500-0004-TM 1125
Manufacturers catalog numberN123J2-0500-0004-TM 1125
Manufacturer grade1125
Maximum depth of cut0.9210
Maximum depth of cut range0.3000 to 1.0000
Multi use toolYes
Overall width0.1713
RakePositive
