Sandvik Coromant

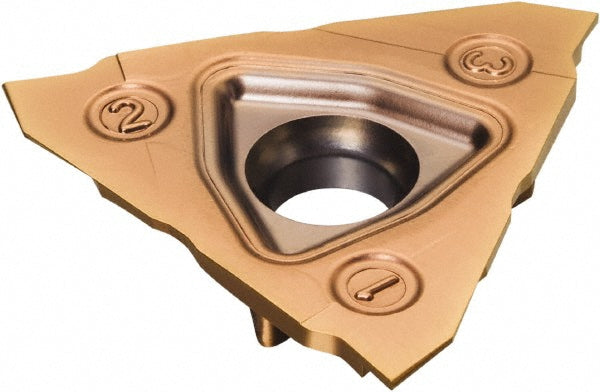

N123T3-0100-RS 1125 Solid Carbide Insert, TiAlN - Sandvik Coromant 5736421
MFR# 5736421ISO/ANSI# N123T3-0100-RS 1125Cat# N123T3-0100-RS 1125Series CoroCut 3
$60.45List $77.54
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
MaterialSolid Carbide
CoatingTiAlN
Description
The Sandvik Coromant 5736421 is a N123T3-0100-RS 1125 solid carbide indexable insert, TiAlN coated.
Specifications
Chip breakerRS
Coating finishTiAlN
Coating processPVD
Corner radius0.0197
Cutting height0.1469
Cutting width0.0394
Insert handNeutral
Insert materialSolid Carbide
Insert seat sizeT
Insert sizeT
Insert styleN123T3
Insert thickness0.1469
Iso codeN123T3-0100-RS 1125
Manufacturers catalog numberN123T3-0100-RS 1125
Maximum depth of cut0.0870
Maximum depth of cut range0.0750 to 0.1000
Minimum corner radius0.0197
Multi use toolYes
Overall length0.4130
Overall width0.0390
RakePositive
